Onboard Air System X957

Product Description

Viair Constant Duty Onboard Air System for 37" Tires is a pre-packaged compressed air solution that provides a faster, 33 percent duty cycle, 450C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires with nothing further to purchase. Features a permanent magnetic motor and 100 PSI of pressure.

Amazon.com

VIAIR's Constant Duty Onboard Air System (OAS) is an all-in-one compressed air solution designed to work in conjunction with the vehicle it is mounted on. Included in this unit is a 150 PSI, 100% duty cycle VIAIR 450C compressor, a 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires 37" or larger. This powerful compression ability, along with the system's included pressure switch, 2.5 gallon air tank, multiple ¼" NPT port openings and more make it the perfect solution for users who need to go mobile with their pneumatic tool set. .caption { font-family: Verdana, Helvetica neue, Arial, serif; font-size: 10px; font-weight: bold; font-style: italic; } ul.indent { list-style: inside disc; text-indent: -15px; } table.callout { font-family: verdana; font-size: 11px; line-height: 1. 3em; } td.vgoverview { height: 125px; background: #9DC4D8 url(https://images-na.ssl-images-amazon.com/images/G/01/electronics/detail-page/callout-bg.png) repeat-x; border-left: 1px solid #999999; border-right: 1px solid #999999; padding-left: 20px; padding-right: 20px; padding-bottom: 10px; width: 250px; font-family: verdana; font-size: 12px; }

Compression for Most Applications Including Off Road Rated for inflation of 37" tires and up as well as a variety of pneumatic tools, VIAIR's Constant Duty OAS is a match for, and tough enough for just about any compression application imaginable. The system is designed to be mounted on compatible vehicles, effectively creating a pneumatic workshop on wheels. Supplied components include a 100% duty cycle 450C compressor with 150 PSI capabilities, a 2.5 gallon air tank, a pressure switch with relay, a dash panel gauge with on/off switch and a variety of additional components needed to install the working system in your vehicle. As the "Constant Duty" name implies, this system is designed for heavy continuous work, yet although it does not require resting, it should not be run for more than an hour at a time. No matter the task, the Constant Duty Onboard Air System can supply the air needed to get jobs done.

150 PSI of continuous power available from your vehicle. View larger. Everything you need right out of the box to turn your vehicle into a mobile repair shop of pneumatic tools. View larger. Easy to mount and configure for different uses. View larger. System Specifications

• Motor voltage - 12 volt
• Motor type - Permanent magnetic
• Max. duty cycle: 100% @ 100 PSI
• Max. working pressure - 150 PSI
• Max. Amp draw - 19 Amps
• Max. ambient temperature - 158°F
• Min. ambient temperature - -40°F
• CFM @ 0 PSI - 1.66
• ¼" NPT Intake Port

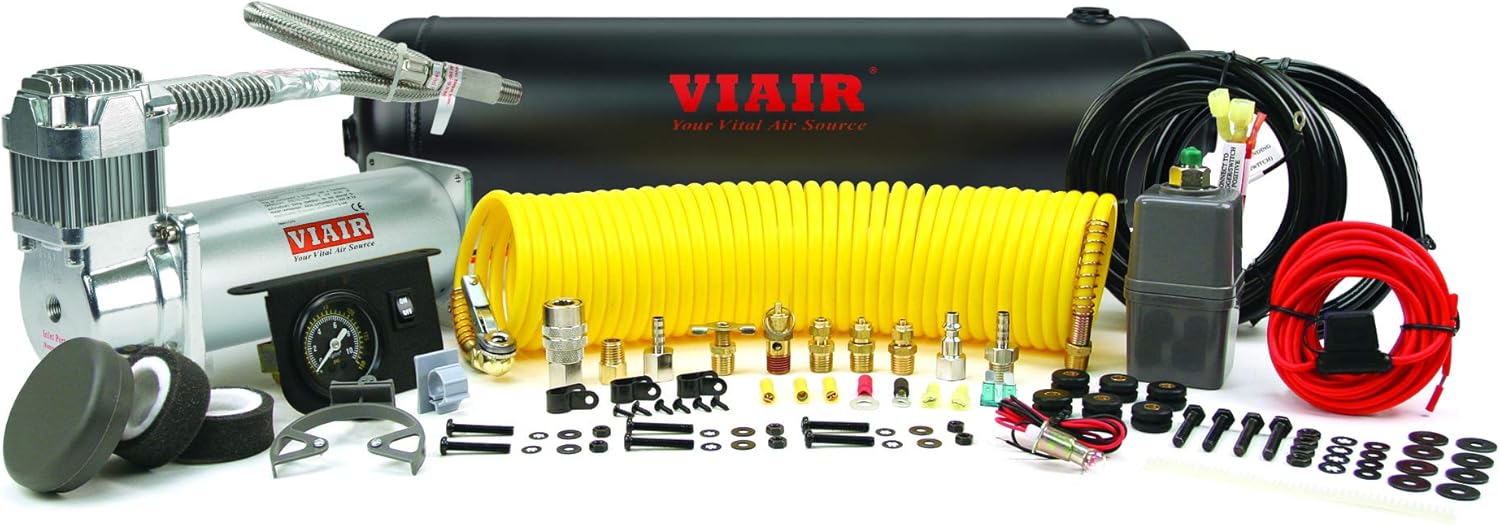

What's in the Box

• 1-2.5 gallon VIAIR air tank (six port)
• 1-450C 150 PSI VIAIR air compressor
• 1-35' coil hose with clip-on tire chuck
• 1-¼" NPT quick connect coupler (F)
• 1-Dash panel gauge with on/off Switch
• 1-Pressure switch with relay (110 PSI-on, 150 PSI-off)
• 1-reducer (⅛" NPT F to ¼" NPT M)
• 1-¼" NPT - 175 PSI safety valve
• 1-¼" NPT drain cock
• 1-¼" NPT compression fittings
• 1-4" Strip of continuous grommet material
• 1-20' section of 12 gauge wire with inline fuse holder
• All necessary electrical connectors
• 1-Accessory airline
• Owner's manual

From the Manufacturer

10007 Standard Features

• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 19 Amps
